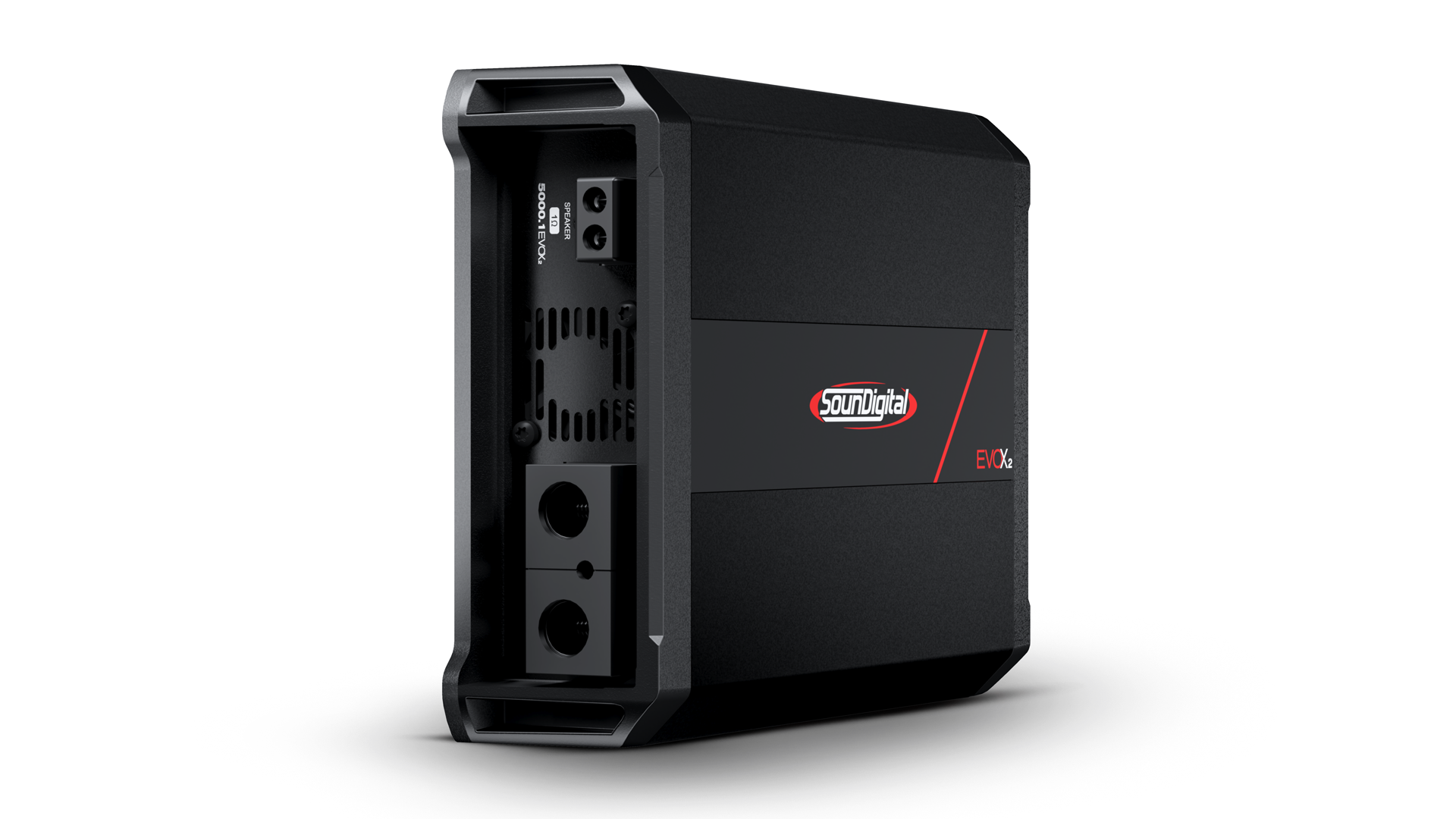

SD - 5000.1 EVOX2
5000.1 EVOX2 – 1Ω
Power @ 4Ω: 1 X 2178 WRMS
Power @ 2Ω: 1 X 3300 WRMS
Power @ 1Ω: 1 X 5000 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 202 A
Current Draw (Max): 404 A
Recommended Fuse (Music): 250 A
Total Efficiency: 86%
Damping Factor: >2000
Frequency Response (-3dB): 5Hz – 6000Hz
SNR: 90dB
Crossover HPF/Subsonic: 5Hz – 40Hz
Crossover LPF: 50Hz – 6000Hz
THD + N (10% Rated Power): 0.08%
Product Dimensions: 9.8 x 7 x 2.8 in
Product Dimensions: 24.9 x 17.8 x 7.1 cm
5000.1 EVOX2 – 2Ω
Power @ 4Ω: 1 X 3300 WRMS
Power @ 2Ω: 1 X 5000 WRMS
Power @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 202 A
Current Draw (Max): 404 A
Recommended Fuse (Music): 250 A
Total Efficiency: 86%
Damping Factor: >2000
Frequency Response (-3dB): 5Hz – 6000Hz
SNR: 90dB
Crossover HPF/Subsonic: 5Hz – 40Hz
Crossover LPF: 50Hz – 6000Hz
THD + N (10% Rated Power): 0.08%
Product Dimensions: 9.8 x 7 x 2.8 in
Product Dimensions: 24.9 x 17.8 x 7.1 cm
