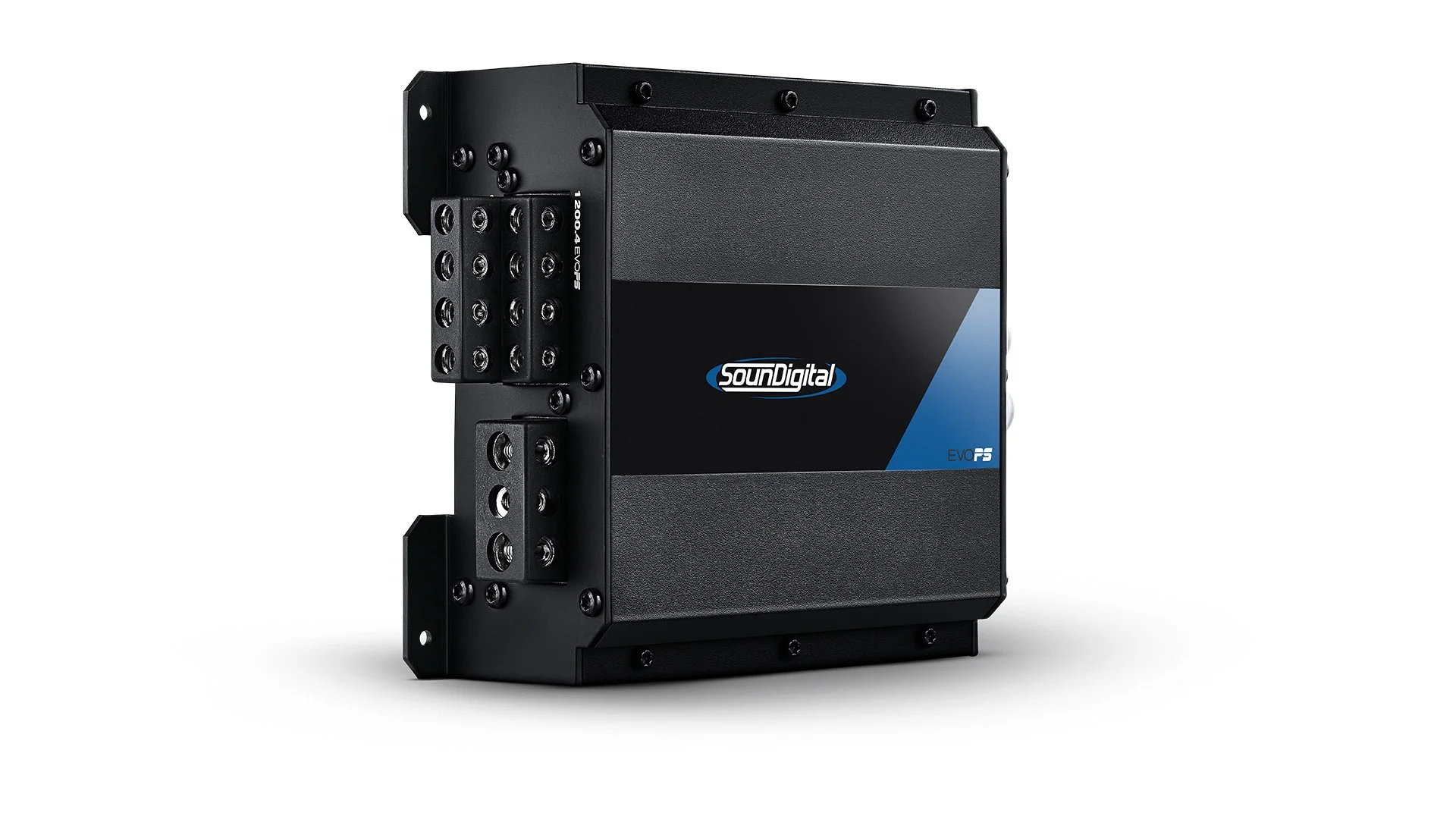

SD 1200.4 EVO PS Amplifier

1200.4 EVOPS – 2Ω
Power @ 4Ω: 4 X 130 WRMS
Power @ 2Ω: 4 X 198 WRMS
Power @ 1Ω: 4 X 300 WRMS
Bridge Power @ 4Ω: 2 X 396 WRMS
Bridge Power @ 2Ω: 2 X 600 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 49 A
Current Draw (Max): 99 A
Recommended Fuse (Music): 60 A
Total Efficiency: 84%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 88dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: in
Product Dimensions: cm

1200.4 EVOPS – 4Ω
Power @ 4Ω: 4 X 198 WRMS
Power @ 2Ω: 4 X 300 WRMS
Power @ 1Ω: N/A
Bridge Power @ 4Ω: 2 X 600 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 50 A
Current Draw (Max): 101 A
Recommended Fuse (Music): 60 A
Total Efficiency: 82%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 88dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
