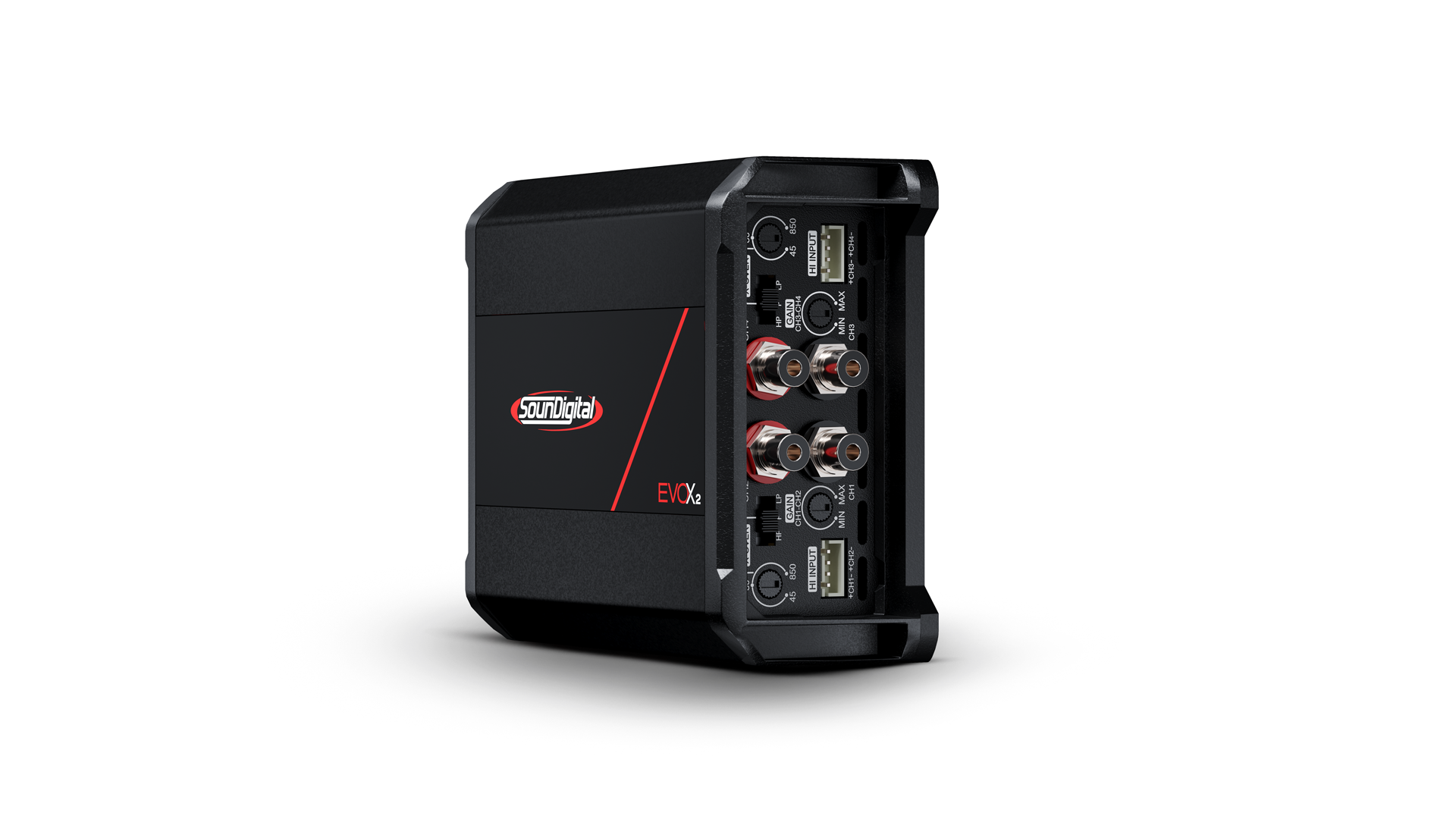

SD 800.4 EVOX2 4 Channel
800.4 EVOX2
The 800.4 EVOX2 is a compact, modern amplifier that delivers 800W RMS of power over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Product Overview
800.4 EVOX2 – 4 OHMS
Power @ 2Ω: 4 X 200W
Power @ 4Ω: 4 X 132W
Bridge Power @ 4Ω: 2 X 400W
Bridge Power @ 8Ω: 2 X 264W
Frequency Response (-3dB): 5Hz ~22kHz
Low Pass Filter: 45Hz ~ 850Hz
High Pass Filter: 45Hz ~ 850Hz
Operating Voltage: 8V ~ 16V
SNR: 91dB
Input Sensitivity: 0.2V ~4V
Current Draw (Music): 35A
Current Draw With Resistive Load: 70A
Total Efficiency: 80%
Damping Factor: 200
Power Cable: 10mm² (7 AWG)
Audio Output Cable: 2 x 1.5mm (15AWG)
Recommended Fuse (Music): 40A
Recommended Battery (Minimum): 60Ah
Width: 4.4 in / 11,3 cm
Length: 5.8 in / 14,8 cm
Height: 2 in / 5,1 cm
